Commercial Tiki Hut Construction – 50′ × 100′ Pavilion (VE High-Velocity Zone)
Built by
Monster Tiki Huts.
Project Summary

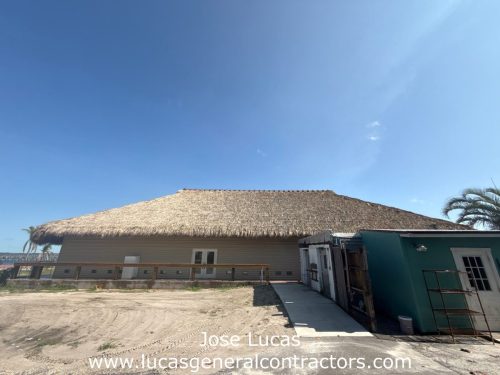

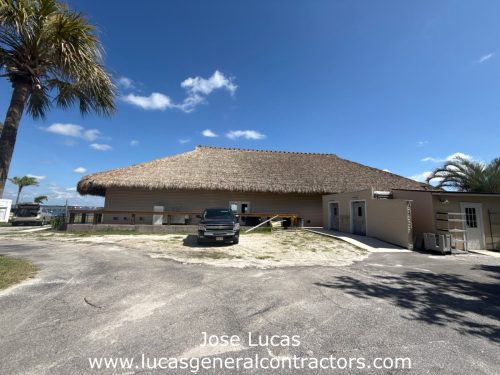

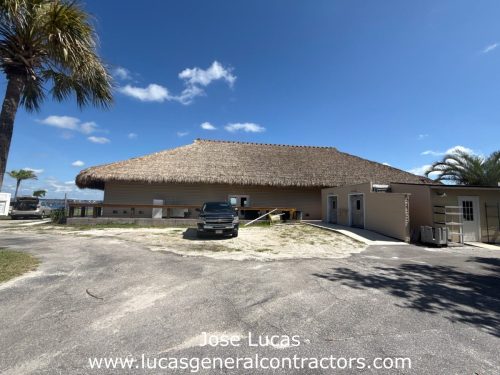

50′ × 100′ (≈ 5,000 sq ft) commercial tiki pavilion
Posts extend approx. 12′ above grade

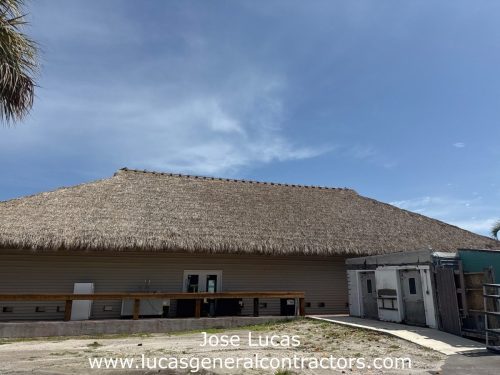

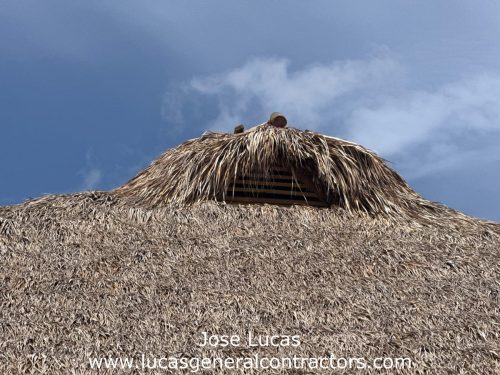

Natural thatch with continuous ridge & perimeter drip control
VE high-velocity coastal zone; engineered to applicable wind & flood requirements
5′ continuous overhang around the entire pavilion

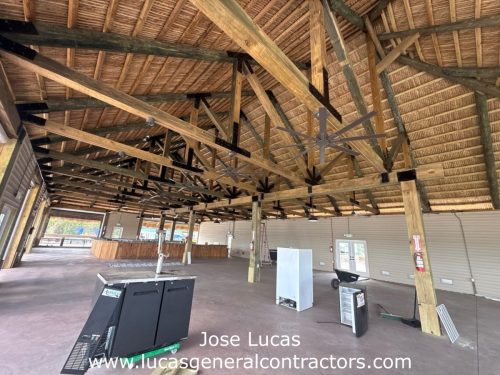

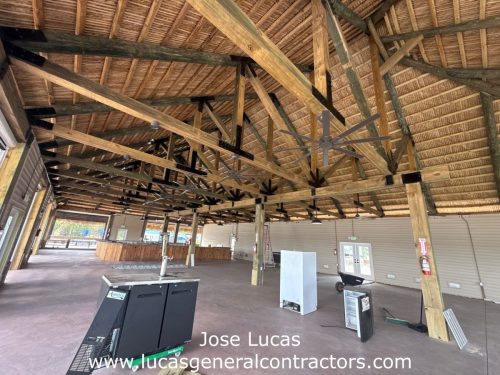

Structure & Materials

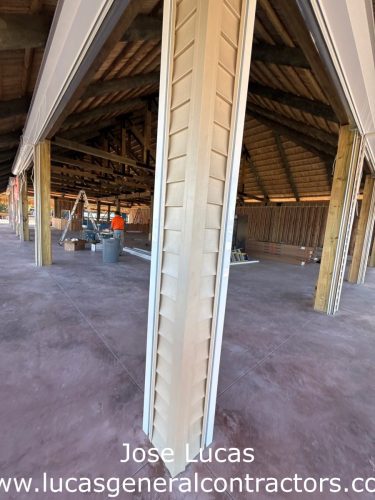

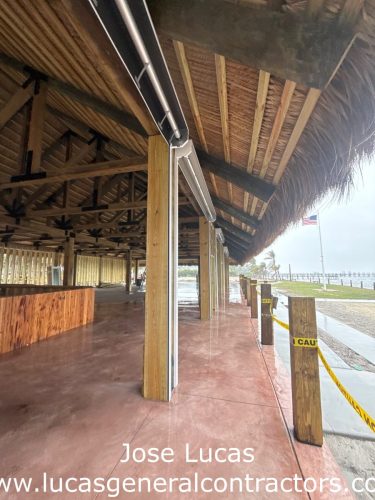

- Posts: square pressure-treated pine 12″ × 12″, approx. 12′ above grade.
- Beams: square pressure-treated pine 12″ × 12″ heavy beams.
- Rafters: commercial round rafters with ≈12″ butt for long-run spans.
- Purlins: treated 3×4 timbers in a tight grid for thatch support.
- Thatch: natural thatch optimized for commercial coverage and guest circulation.
- Overhangs: 5′ perimeter eaves on all sides with detailed drip management.

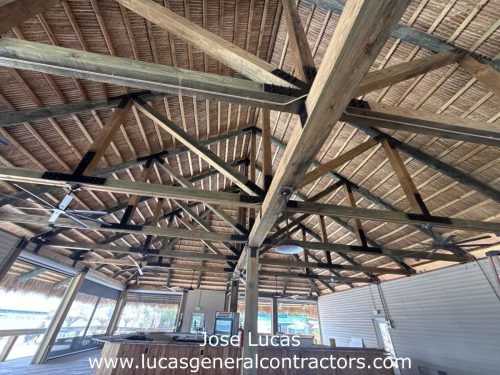

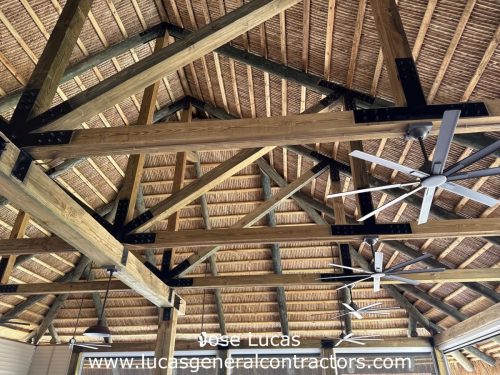

- Custom trusses & plates: all trusses are custom built with heavy engineered steel plates.
- Base connections: posts are tied to the foundation with custom steel base plates and an engineered connector schedule.
Foundations & Concrete
- Helical piles installed to approximately 35′ depth (per geotechnical/engineering criteria).
- Post footers: solid 5′ × 5′ reinforced concrete footers at each post.
- Slab: full concrete slab placed and finished by Monster Tiki Huts.
Storm & Operations Package

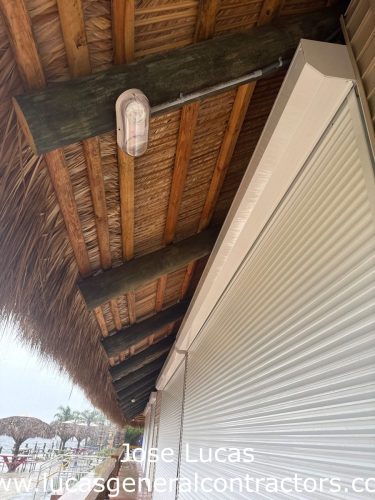

- Hurricane shutters installed for openings as part of the scope.
- Roll-down curtains for weather protection and operational flexibility.

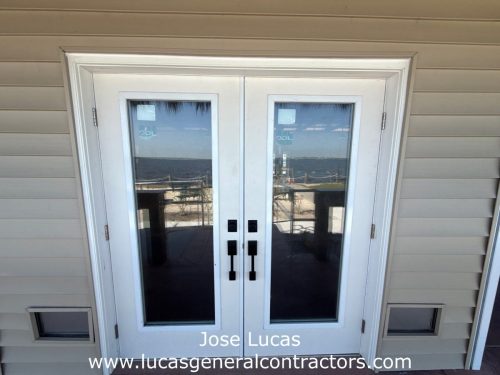

- Exterior breakaway wall elements designed for flood conditions.

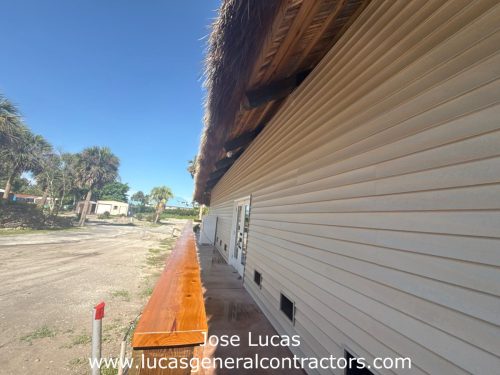

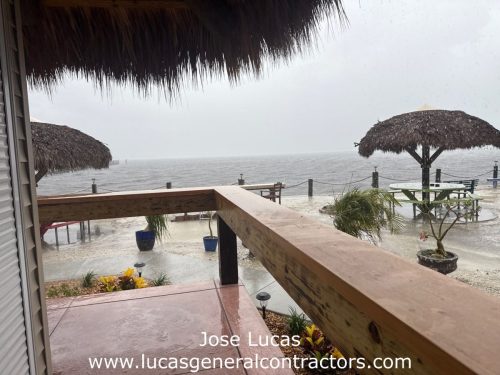

- Perimeter bar top rail system integrated around the pavilion edge.
Engineering, Compliance & Team
- Designed for coastal hurricane wind demands in a VE high-velocity zone; elevations and detailing follow flood standards.
- Interdisciplinary delivery with a landscape architect, civil engineer, licensed surveyor,
certified flood manager, and architect. - Fabrication and erection by Monster Tiki Huts with engineered connections and inspection coordination.
Commercial Use Cases
Ideal for resorts, waterfront venues, restaurants/bars, theme parks, and
event pavilions seeking authentic commercial tiki hut construction with high-wind and flood compliance.
This 50′ × 100′ commercial tiki hut demonstrates large-scale tiki pavilion construction in a VE coastal zone using
12×12 pressure-treated pine posts (≈12′ above grade), 12×12 beams, commercial round rafters (≈12″ butt),
and a dense 3×4 purlin grid under a natural thatch roof. It features 5′ perimeter overhangs on all sides for
enhanced shade and rain protection. The structure includes custom-built trusses with heavy steel connection plates,
custom steel base plates at posts, helical piles ~35′, 5′ × 5′ concrete footers, and a full concrete slab.
Operations upgrades include hurricane shutters, roll-down curtains, an exterior breakaway wall design,
and a perimeter bar top rail system. Delivered by Monster Tiki Huts.
Notes: Sizes/depths reflect project documentation and field conditions; final engineering governs member sizing, connection schedule, and pile/footing criteria.
